10.1-inch PCAP Touchscreen Overlay with 10mm Anti-explosivie Glass and Plug-and-Play USB Touch Controller
Product Description:

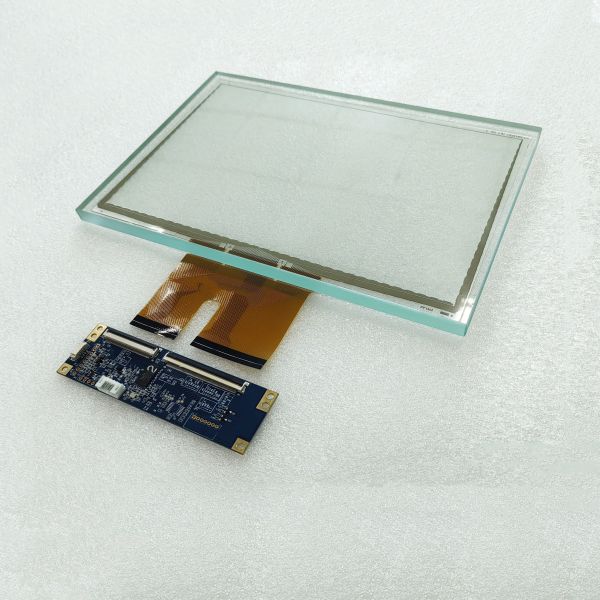

LBCTP101090V1 is a 10.1'' PCAP touchscreen overlay, including a PCAP touch sensor opticallbe bonded with an anti-explosive glass, touch controller PCBA with USB/RS232/IIC interface, and a USB cable. It is plug and play on Windows and Android operating systems.
The touchscreen overlay features a durable 10mm glass thickness, ensuring long-lasting performance and protection against impact. It is specifically designed to withstand challenging environments and harsh conditions, making it ideal for industrial settings in hazardous environments.
One of the standout features of the Explosion Proof Touch Overlay is its explosion-proof rating, it can be used in Zone 1 and Zone 2 as well as IECEx Zone 1 and Zone 2. It is safe to use in potentially explosive atmospheres, providing peace of mind and compliance with stringent safety regulations.
The anti-explosive glass used in the overlay construction enhances safety and durability, making it a reliable choice for high-risk environments. The robust construction of the overlay protects against potential hazards, minimizing the risk of damage and ensuring reliable performance in challenging conditions.
Features:
- Product Name: 10.1'' Explosion Proof Touch Glass
- Touch Technology: PCAP Touch
- Resolution: 1280x800 Pixels, 1920x1200 Pixels
- Glass Type: Explosion-proof
- Compatibility: Windows, Android, Linux
- Features: 10 Joules Touch Glass, Anti-explosive touch, IK10 touch glass
Technical Parameters:
| Size |
10.1'' |
| Model No. |
LBCTP101090V1 |
| Resolution |
1920x1200; 1280x800 |
| Aspect Ratio |
16:10 |
| Glass Thickness |
10mm |
| IK Rating |
IK10 |
| Layers |
Front Glass + Touch Sensor |
| Touch Technology |
Capacitive Touch, ITO Technology Touchscreen Sensor |
| Touch Controller |
EETI |
| Glass Type |
Explosion-proof |
| Response Time |
≤10ms |
| Transparency Rate |
≥85% |
| Compatibility |
Windows, Android, Linux |
| Explosion Proof Rating |
ATEX Zone 1 And Zone 2, IECEx Zone 1 And Zone 2 |
Applications:
LB's Explosion Proof Touch Overlay by LB (Model: LBCTP101090V1) is equipped with an EETI touch controller, this product utilizes capacitive touch technology for precise and responsive interactions.
With a 10 Joules touch glass, this overlay provides enhanced safety features, making it suitable for various environments. The IK10 touch glass further reinforces the product's robustness, ensuring reliability in harsh environment.
LB's Explosion Proof Touch Overlay caters to a wide range of users and applications, especially for industrial control panels in hazardous invironment. This product offers a seamless touch experience with its advanced technology and rugged design. It also can be used in public area, rugged control panels, anti-vandal kiosks and etc.
